Different Layers of Protection

1. Entrance Layer Protection:

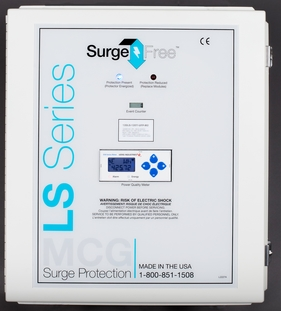

a. Service Entrance Protector - LS Series
Card image cap

I peak = (560,000A - 200,000A)/Phase

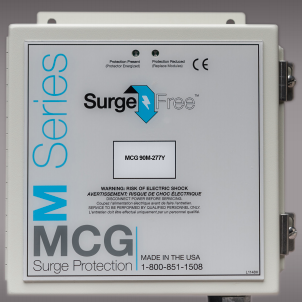

b. Branch Panel Protector - M Series
Card image cap

I peak = (160,000A / 120,000A / 80,000A) / Phase

2. Load Layer Protection:

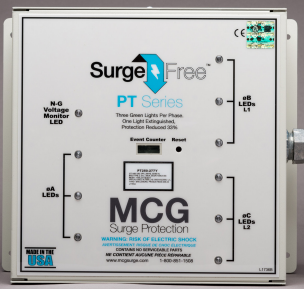

a. Critical Load Protector - PT Series
Card image cap

I peak = (250,000 / 160,000A / 120,000A) / Phase

b. Local Load Protector - PT Series
Card image cap

I peak = (80,000A / 40,000A) / Phase

3. Industrial Grade Protection:

a. Industrial grade - SE Series
Card image cap

I peak = (200kA - 100kA) / Phase

b. Single Phase - 500 Series
Card image cap

Install at or within equipment

4. Control & Equipment Protection:

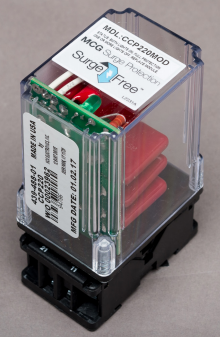

a. Control Panel - CCP Series
Card image cap

I peak = up to 40,000A max mode for control cabinets, OEM equipment)

b. Equipment Level - 400 Series

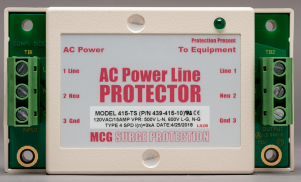

Card image cap

PLCs, Fire Alarm monitoring systems, security controls etc.

5. Data and DC Protection:

a. Data Line - DLP-25 Series
Card image cap

Critical control circuits

b. DC Line
Card image cap

DC powered equipment (e.g. inverters, photovoltaic systems, etc.)
